| 型号 Model | CW-5200TH | CW-5200DH | CW-5200TI | CW-5200DI |
| 事情电压 Voltage | AC 1P 220~240V | AC 1P 110V | AC 1P 220~240V | AC 1P 110V |
| 事情频率 Frequency | 50/60Hz | 60Hz | 50/60Hz | 60Hz |
| 事情电流 Current | 0.5~4.8A | 0.5~8.9A | 0.4~5.7A | 0.6~8.6A |
| 整机额定功率 Max. power consumption | 0.69/0.83kW | 0.79kW | 0.73/0.87kW | 0.79kW |
| 压缩机功率 Compressor power |
0.56/0.7kW | 0.66kW | 0.56/0.7kW | 0.66kW |
| 0.75/0.93HP | 0.9HP | 0.75/0.93HP | 0.9HP | |
| 名义制冷量 Nominal cooling capacity |
4879Btu/h | |||
| 1.43kW | ||||
| 1229Kcal/h | ||||
| 制冷剂 Refrigerant | R-134a | R-410A | R-134a | R-410A |
| 水泵功率 Pump power | 0.05kW | 0.09kW | ||
| 水泵最大扬程Max. pump pressure | 12M | 25M | ||
| 水泵最大流量 Max. pump flow | 13L/min | 15L/min | ||
| 温控精度 Precision | ±0.3℃ | |||
| 节约器 Reducer | 毛细管Capillary | |||
| 水箱容量 Tank capacity | 6L | |||

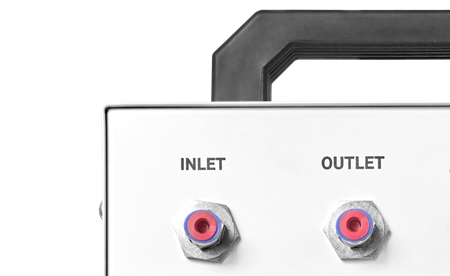

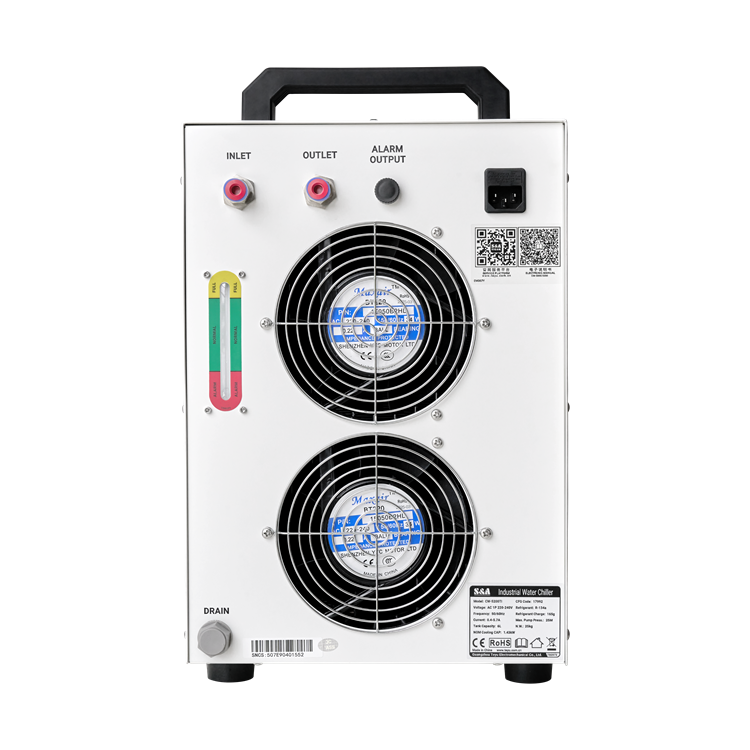

| 收支水口 Inlet and outlet | 外径10mm浮图讨论 OD 10mm Barbed connector | 直径10mm快速讨论 10mm Fast connector | ||
| 净重 N.W. | 22Kg | 25Kg | ||
| 毛重 G.W. | 25Kg | 28Kg | ||
| 机械尺寸 Dimension | 58 X 29 X 47cm (L X W X H) | |||
| 包装尺寸 Package dimension | 65 X 36 X 51cm (L X W X H) | |||
注：本站产品的手艺参数信息仅供参考 ，一切以现实交付为准 。
